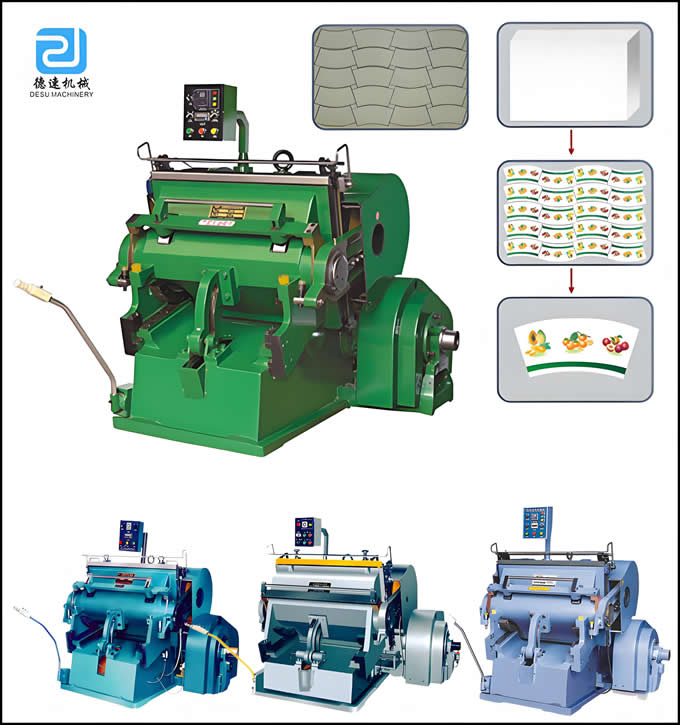

DS-930 Manual Paper Fans Die Cutting and Creasing Machine
Product Description
Die cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workman ship, big pressure, high precision and easy and reliable operation.
Major construction features:
· high strength due to one piece casting by using top quality machine for machine body.
· Smooth running, big pressure and low noise are obviously remarked as 3-step helical gear mechanism is adopted.
· Single plate electromagnetism clutch is sensitive reliable. Operational altitude is reasonably arranged, Moving bed opens to its optimism.
· Electrical system is designed in conformity with ICE standard.
· Safety system is really reliable.
· Concentrate lubricating system
1. It is easy to operate the machine. Only put the paper into the machine, and then press “on” button it can work.
2. it can achieve the different shape, such as block, round, fan-shaped and so on in one machine, only change the knife rest
3. One worker can operate one machine.
4. one ordinary paper( 90cm*55cm) can make 16pcs 20pcs, 24pcs paper cup.( according to different size of paper cup)
|
Technical Data |
|
Model |
DS-930 |
DS-1100 |
DS-1200 |
|
Max. Rule Area |
930*660mm |
1100*800mm |
1200*820mm |
|
Max. Rule Length |
<25m |
<32m |
<35m |
|
Working Speed(strokes/min) |
25+3 |
23+2 |
20+2 |
|
Electric Power |
15kw |
13.8kw |
12kw |
|
Motor Power |
4kw-6H |
4kw-6H |
5.5kw-6H |
|
N.W/G.W. |
3000/3200kg |
4500/4800kg |
5200/5500kg |
|
Dimension(mm) |
1850*1650*1950 |
1950*1970*1700 |
2000*2200*1800 |
|
FAQ |
|
1. ARE YOU MANUFACTURER OR TRADING COMPANY ?
We are the manufacturer of the paper cup machine, paper bowl machine, cake tray machine, paper plate machine, etc.
2. WHERE IS YOUR FACTORY LOCATION?
Our company locates in Wanquan Town, Pingyang, Wenzhou, Zhejiang,China
3. HOW CAN I GET THE SAMPLES?
We can supply some free samples. Besides, the express charges will be paid in your side.
4. WHAT ABOUT YOUR MACHINE DELIVER TIME ?
15 days after getting the advance.
5. HOW IS YOUR PAYMENT TERMS?
We accept different payment terms, such as L/C, offshore account, T/T.
The usual one is 30% T/T advance, balance before delivery
6. WHAT IS UR ONLINE CONTACTS AND EMAIL ADDRESS?
Wechat/WhatsApp/facebook:+8613362737790 Email: sales@dushchina.com
Web in alibaba: http://dushchina.en.alibaba.com/
