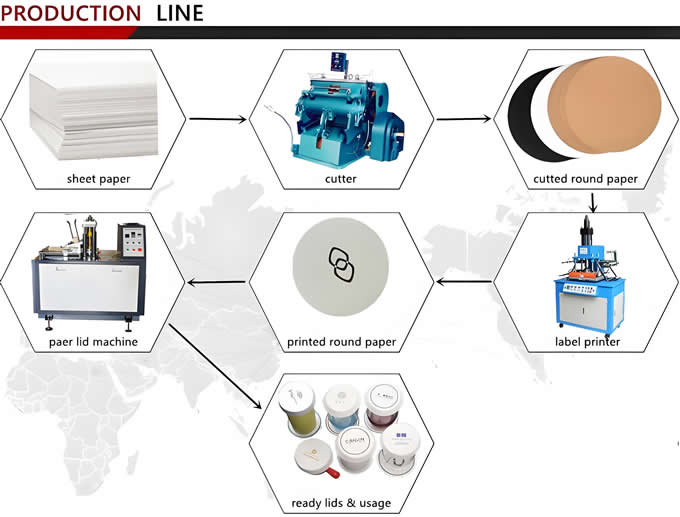

Paper cup machine processing line
Tray Forming
Process

 HOTEL CUP LID/COVER MACHINE >> JDGT-D Hotel Paper Cup Lid/Cover Forming Machine Views:640


DESCRIPTION

JDGT-D Automatic Paper Hotel Cup Lids Making Machine

This machine is with full automatic running system. It uses the machine handle to clip paper, feeding paper, separate paper, punching, discharges, etc. This model can make different size of paper lids or covers which is very popular and play an

Important role in the hotels and airplane service. Simple structureinverter,  automatic temperature controller, easy to operate, high efficient, stable running.

TECHNICAL DATA

Suitable Size

Diamater 55-100mm

Raw Material

150-400gsm one side PE coated paper, cardboard paper

Ration Productivity

40-45pcs/min

Total power

2.5 KW

Air Pressure/Air Flow

0.4 m3/min, >0.6mpa(need to buy an air compressor)

N.W./G.W.

500kg/600kg

Electric Power

220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type

Overall Dimension

1300L*800W*1250H(mm)

Video Link

https://youtu.be/1Qd89SqveXk
